Electromechanical Level Measurement

The Nivobob series of plumb bob UWT sensors is used for continuous level measurement within bulk storage silos and for interface measurement (Wood Chip Shavings Level Transmitter). The simple electromechanical measurement principle is a truly reliable all-rounder in most bulk materials. The sensor weight, made of a suitable material, attached to either a tape or rope is electromechanically lowered from the top into the vessel. Once the sensor weight rests on the material, the winding direction of the motor changes and the sensor weight is rewound to the upper stop position. For interface measurements, the sensor weight can be adjusted according to the density of the sediment. The distance is electronically measured and together with the programmed silo geometry information the microprocessors convert this distance into a volumetric output signal. The Nivobob generates an analog 4-20 mA signal and a Modbus RTU or Profibus DP interface for the evaluation systems. As the system is immune to dust, dielectricity, conductivity, humidity and caking, the Nivobob always delivers a reliable level signal. The system is simple to operate and extremely durable which keeps service and operating costs to an absolute minimum.

  • 4...20 mA output signal + HART protocol
  • Timed Measurement Cycle
  • Inhibit measurement During Filling Function
  • Hold Last Measurement During Filling Inhibit Function
  • Easy installation
  • Unfected by conductivity, dust, dielectric
  • ATEX II 1/2 D
  • aintenance free
  • Wood Chip Shavings, Cement Level Sensor

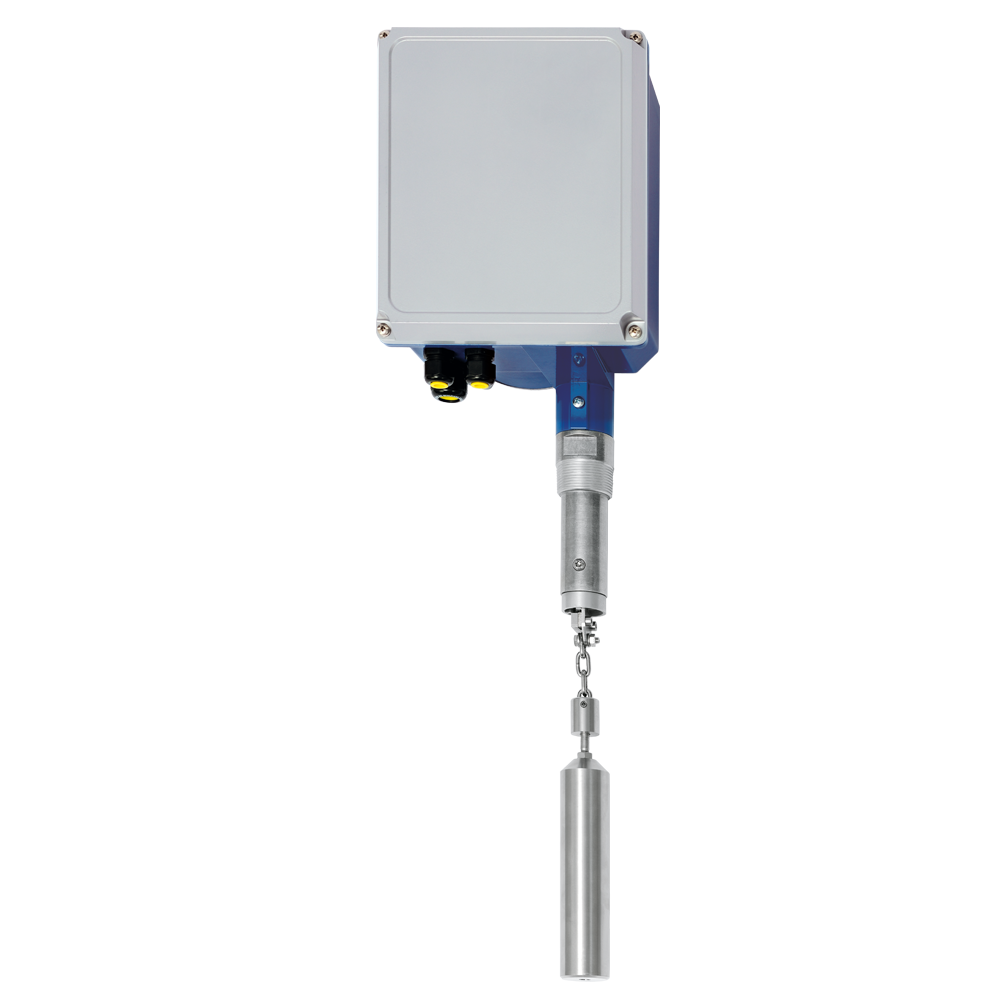

NB4000 Nivobob Electromechanical Level Measurement UWT Gmbh Ireland
