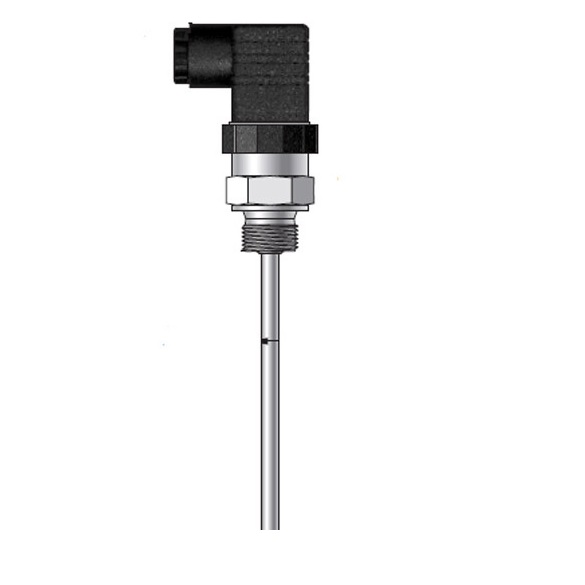

CT-25 PT100 Temperature Sensor
RTD output signal Stainless Steel
Temperature sensor type CT-25 is designed for temperature measurement of liquid and gaseous media in range from -40 to +100°C. Casing of sensor and wetted parts are made in stainless steel. Available electrical connections are angular connector DIN EN 175301-803 or connector M12x1
- Measuring range -40...100°C
- Accuracy ±(0,3+0,005|t|)°C (class B per IEC 60751)
- Process connection G1/2"
- Immersion length 50...1000mm
- Wetted parts material 316
- Sensor diameter 4 / 6 / 8mm
- Ingress protection PD - IP65, PM12 - IP67
