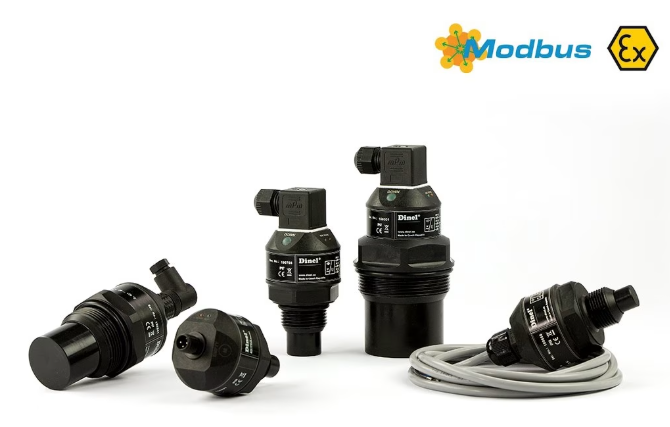

Ultrasonic Level Sensor ULM-53

Ultrasonic Sensor for Level Measurement

The ULM-53 blind ultrasonic level sensors are compact measurement devices, without display, containing an ultrasonic transmitter and an electronic module. Using a transmitter, level meters transmit the series of ultrasonic pulses that spread towards the level surface. The ultrasonic level sensor ULM-53 recuperates reflected acoustic waves that are subsequently processed in the electronic module. Based on the period during which the individual pulses spread towards the level and back, this period is averaged by the electronics which performs temperature compensation and subsequently a conversion to an output current 4 -20 mA, voltage 0 - 10 V or output RS-485 Modbus. Thanks to the contactless measuring principle ultrasonic level meters are suitable for continuous measurement or limit level sensing of liquids, wastewater, sludge, suspensions, adhesives, resins in various open and closed vessels, sumps, open channels, and drains. Use for organic solvents or substances, which contain organic solvents, should be consulted with the manufacturer. Usability for level measurement of solid materials is limited, there is a shorter measuring range. We recommend using the level meter for such a medium to consult with the manufacturer. Configuration is carried out either using two buttons or a magnetic pen or by remote setting in case of Modbus RTU output. The device is equipped with an optical indication of its state (RUN) and the setting process (STATE). It is manufactured in designs for normal (N) and explosive atmospheres (Xi).

  • Model ULM-53
  • Continuous Level Measurement of Liquids & Solids
  • Output 4...20mA / 0...10V / Modbus
  • Blocking Distance / Ranges = 0.1m to 1m / 0.20m to 2m / 0.20m to 6m / 0.4m to 10m / 0.5m to 20m
  • Adjustment by two buttons, or by magnetic pen
  • ATEX Intrinsic Safety
  • Ultrasonic Level Sensor Without Display
  • Non Contact Level Measurement
