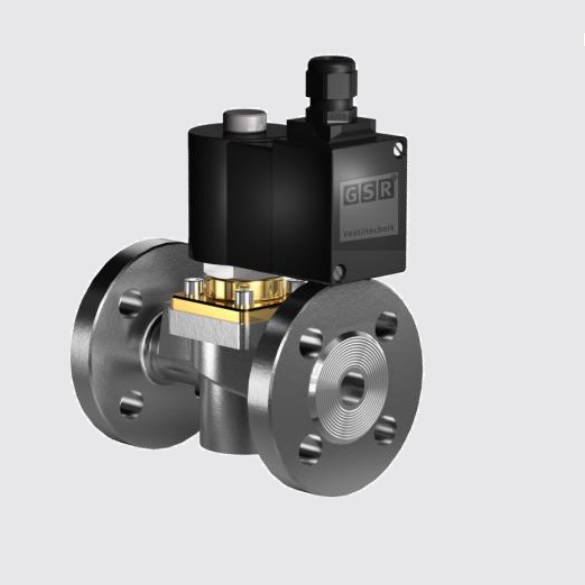

Type 37TH High Temperature +200 °C Force Pilot Solenoid Valve GSR
2/2-way High Temperature Solenoid Force Pilot Valve
2/2-way solenoid valve NC - Valve normally closed (as standard) NO - Valve normally open (as option) Force-pilot operated piston valve No differential pressure is necessary for operation. In standard (NC) the valve closes with spring power. Solenoid valve for extended temperature range +200 °C
- Type of control Force-pilot operated, no pressure difference necessary
- Design Piston design
- Connection Flanges DN15 - DN50
- Installation Actuator upright
- Pressure 0 - 40 bar
- Body material Cast Iron/Cast Steel/Stainless Steel
- Metallic inner parts Brass and st. steel
- Sealing PTFE
- Supply voltage AC/DC
- Protection class IP65
- Duty factor 100% ED-VDE 0580
- Connection type terminal box
- For media temperatures up to +200 °C
