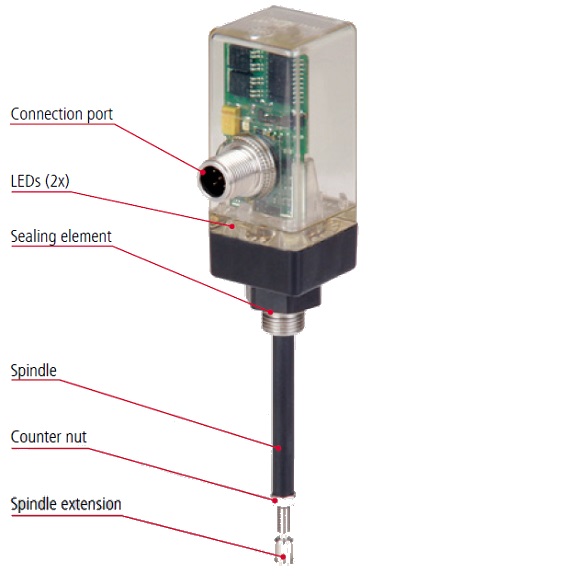

G7 Electronic Position Feedback
For single and double acting actuators
Limit switches are used to control, monitor and view the position of the valve or to activate other system components. Expansion kit for existing actuators of type: 22, 26, 63, 78, 79.
- Indicates two or three positions
- Backlash free stroke transmission
- Short circuit proof
- M12, 5 pin A-coded connection
- Contact-Free magnetic measuring design
- Colored LED light feedback of valve position visible for 360°
- Material Housing PSU
- Ambient Temperature -10 °C to +70 °C
- Maximum Pressure 8 bar
- Power Supply 24V DC +/- 10%
- Power Consumption 0.7 W
- Maximum Power Input 30 mA
- Electrical Connection Multipol M12, 5 Pin, A-coded
- Switching Current 800 mA
- Stroke Range 3 - 45 mm
- Accuracy +/- 0,1 mm
- Protection Class IP67 according EN 60529
- Conformity according CE EMV-9/336/EWG
- Mounting Position any
