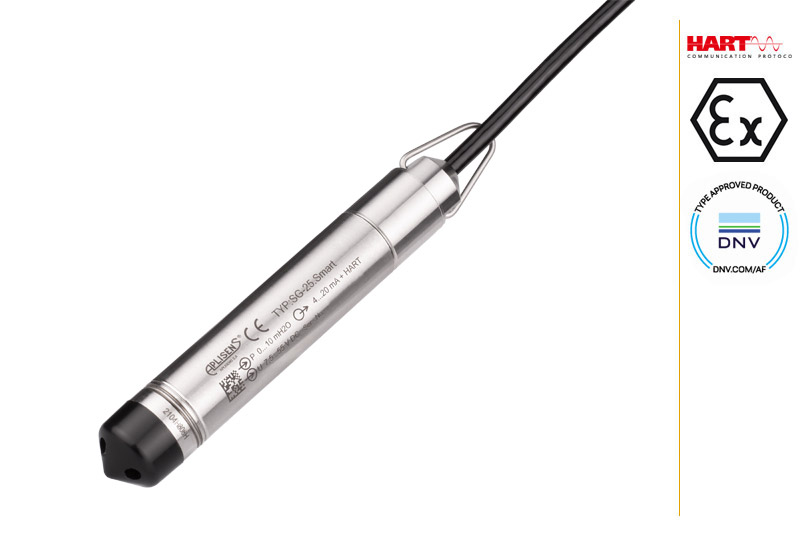

SGE-25-16 Submersible Hydrostatic level Probe
HART communication
The SGE-25.Smart level uses the HART digital communication protocol (Highway addressable remote transducer) for programming and data exchange. Principles of operation, construction The probe measures liquid levels, basing on a simple relationship between the height of the liquid column and the resulting hydrostatic pressure. The pressure measurement is carried out on the level of the separating diaphragm of the immersed probe and is related to atmospheric pressure through a capillary in the cable.
- Programmable zero shift, range and damping ratio
- 4...20 mA output signal + HART protocol
- Accuracy 0.1%
- Integrated internal overvoltage protection circuit
- ATEX Intrinsic safety
- Special version with Titanium wetted parts ( SGE-25S.Smart)
- Marine certificate DNV
- Output 4...20mA / 0...10V / Modbus
