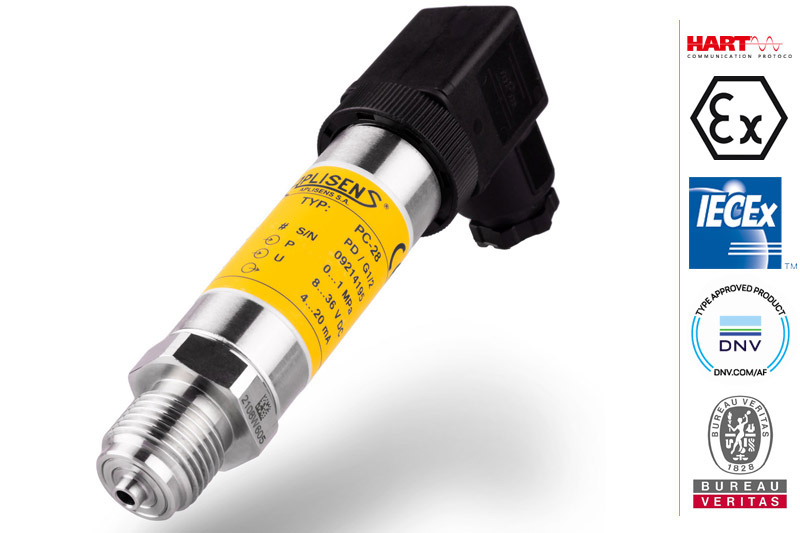

PCE-28 SMART HART Pressure Transmitter 0.1%
SMART Programmable Pressure Transmitter
The Aplisens PCE-28 SMART pressure transmitter is designed to measure the process pressure of liquids or gasses (Gauge Vacuum or Absolute). The transmitter is programmable using HART protocol. The sensor is piezoresistive and is protected from measured medium via a diaphragm filled with application-specific manometric liquid. The electronics housing has an IP rating up to IP 68, depending on the type of electrical connection applied.
- Any range from 0...5 mbar up to 0...1000 bar
- 4...20mA output signal + HART Protocol
- ±0.1% of calibrated range (special version ±0.075% of calibrated range)
- Measurement: Gauge Pressure / Vacuum Pressure / Absolute Pressure
- 4 ÷ 20mA two-wire
- Marine certificate – DNV, BV
- SIL 2 certificate Pressure Transmitter
- Atex Intrinsically Safe
- Communication protocol HART
- Version with local display
- Wetted parts 316Lss, Hastelloy C276, Au Gold plated diaphragm (Au)
