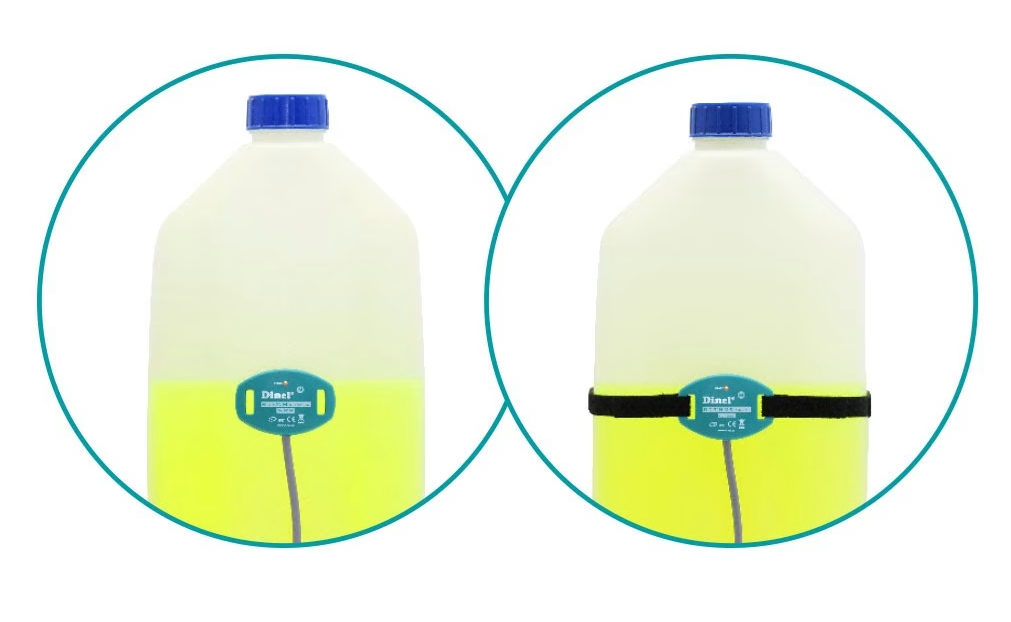

Thru-wall level sensor FLD-32 “Flexi Watch”
level limit detection storage drum canisters
Thru-wall level switches FLD–32 "Flexi Watch" are designed for indication of the presence of (conductive or non-conductive) liquids in glass or plastic vessels. The sensitivity and switching mode can simply be set up using the "programming" wire or magnetic pen, depending on the type of sensor used. The sensor housing is made of a flexible polyurethane material with a self-adhesive layer and holes for fastening bands.
- programming via cable or magnetic pen
- LED status indication
- Supply voltage 6 ... 30 V DC
- Ambient temperature range -20 ... +70 °C
- Diameter min 300 mm
- Max Vessel Thickness 8mm conductive liquids 3mm non conductive
- IP 67
