High-frequency level sensor RFLS-24
HF Level Switch Liquids

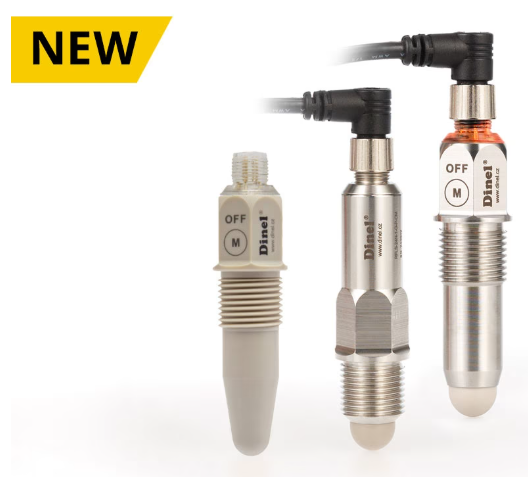

The RFLS-24 high-frequency level sensor is designed for industrial use in limit sensing of liquid and pasty media. It can serve as direct replacement for a vibrating level sensor, or a capacitive level sensor for more demanding applications. Media can be electrically conductive or non-conductive with any permittivity. It can be installed in metal or plastic tanks, filling tanks, sumps, etc. The sensor is available with a standard (Type 1), extended (Type 11), or plastic (Type 3) electrode section, combined with a plastic (CP) or stainless steel (CM) connector.
- RFLS-24 high-frequency capacitive measurement principle
- Supply: 24Vdc
- Output: PNP
- Process -40°C... +105°C
- IP68
- G1/2 or NPT1/2
- M12 eelectrical connection
